Forecourt Models

Compact Unit

Mechanical Units

Pavement Gauge

ACCURA 1 Tyre Inflator

MK3 Tyre Inflator

Part number:                      Description:



     D10                                       Wall Mounted



Suitable for petrol filling stations.This exciting and innovative range incorporates an electronic modular design to allow PCL to offer a “menu driven” range of highly accurate forecourt tyre inflators.



- Auto start inflation

- Default to safe setting

- Aluminium die-cast housing

- Audible and visual end of cycle signal

- Bespoke variants available

- Complies with EC Directive 86/217/EEC & BS EN 12645: 1999

Part number:                      Description:



        D60                                   Wall Mounted



PCL’s ACCURA Compact Unit offers a simple,safe and accurate means of tyre inflation within

a space-saving and cost-effective, lightweight unit. This makes it ideal for  car dealerships, garages, car fleets and OEM applications - where ease of use, accuracy and reliability are key.





- Electronic preset pressure

- Auto-start inflation

- Robust yet lightweight plastic housing

- Ceramic sensor - highly accurate

- Complies with EC Directive 86/217/EEC & BS EN 12645: 1999

Part number:                      Description:



      WM2H01                                      Wall Mounted



Mechanical Units were the original inflators designed and manufactured by PCL.



- Clear impact-resistant toughened glass dial cover

- Durable aluminium outer casing

- Wall Mounted (WM) or Pedestal Mounted (PM)

- Complies with EC Directive 86/217/EEC & BS EN 12645: 1999

Part number:                      Description:

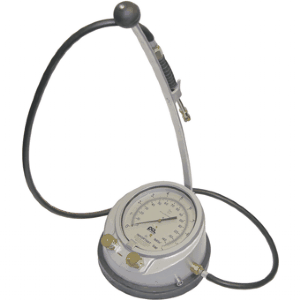

      PG1H01                            Pavement Gauge



The classic PCL Pavement Gauge is a portable tyre inflation unit popular with garage owners worldwide for over 40 years, amongst whom it is commonly known as the "PG".

Robust and easy to use, it is lightweight yet tough, made from heavy duty alloy with an impact absorbing rubber base.

Its clear, toughened glass dial has an angled face to prevent rainwater retention, making it ideal for outdoor use.

Complete with simple push button operation and a handy hook for hose retention, PCL's PG is a handy, space-saving and value-for-money product, which is fully compliant with EC standards.



- Tough - made from heavy duty alloy

- Lightweight (4.3 kg) - easy to carry

- Easy to read toughened glass dial

- Calibrated to 0-145 lbf/in2 and 0-10 bar

- Complies with EC Directive 86/217/EEC & BS EN 12645:1999

   Part number        Hose length             Tyre valve             Calibration



      DAC1C03                  0.53m (21”)             Twin Hold-on              0-12 bar

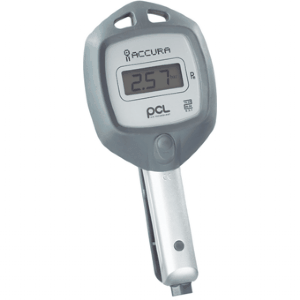

The ACCURA 1 is a robust yetsophisticated handheld electronic tyre inflator designed to break the mould of existing handheld tyre inflation.With leading electronics and sensor technology as

well as patented software it offers fast, accurate and trouble-free tyre inflation and deflation.



- Robust electronic design

- Ceramic sensor

- Clear and easy to read digital display

- Modern, lightweight and shock resistant construction

- Complies with EC Directive 86/217/EEC & BS EN 12645: 1999

  Part number              Hose length                 Tyre valve  connection

      ALG3H03                      0.53m (21”)                              Twin Hold-on

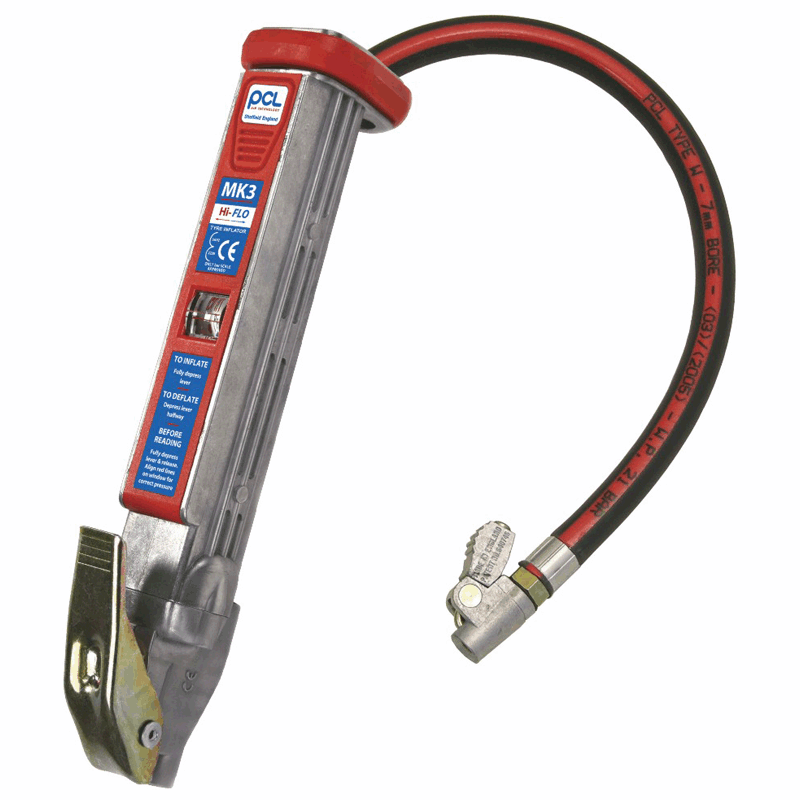

The popular MK3 Tyre Inflator is PCL’s classic handheld, slimline designed gauge. Cast aluminium body for use on the garage forecourt and high volume tyre fitting bay.





- Magnified linearscale

- Cast aluminium body with impact absorbing rubber bumper

- Slimline design

- Calibrated to 0-138 lbf/in² and 0-9.6 bar

- Complies with EC Directive 86/217/EEC & BS EN 12645:1999

Twin Hold-on

Connectors

Part number              Valve connection type              Style                    Inlet size



       CO1A03                      Twin Hold-on                              Open End                  Rp 1/4

       CO3A03                      Twin Clip-on                                Closed End                Rp 1/4



- Suitable for inflation of twin tyres

- Colour coded handles – black for open end and red for closed end

- Choice ofstem length





Clip-on Connectors

Part number              Valve connection type              Style                       Inlet size



      CO2E03                                  Single Clip-on                    Open End              4.75mm (3/16”)





- Suitable for use in tyreshops

- Open and closed end available

- Large bore 12v1 available





Euro Style Connectors

  Part number              Valve connection type              Style                    Inlet size



        CO8E72                                 Euro Style                            Open End             4.75mm (3/16”)





- Clips onto tyre valve to allow operator to work away from tyre

- Suitable for use in tyreshops

- Open and closed end options available

Test Unit

        Part number              Description



             TE2H01                       Test Unit



- PCL’s vast experience in designing and manufacturing tyre inflation equipment extends to    provide this range of portable calibration testing equipment.

- 4 litre air receiver, manufactured in accordance with 87/404/EEC

- Supplied with calibration certificate

- Lightweight (11.2 kgs) and easily portable

- Checks most types of hand-held tyre inflation equipment up to a maximum recordable    pressure of 10 bar (in 0.1 bar units) and 145 lbf/in 2 (in1 lb units)

Mechanical Unit

Replacement Hoses

     Part number                       Hose length                                Description



          RHA193                                   7.6m (25ft)                       Twin Twisted Hose with Hand                                                                                                               Control, Connector Hose and Twin                                                                                                       Hold-On Connector





            RHA195                                 7.6m (25ft)                     Co-Axial Hose with Hand Control,                                                                                                         Connector Hose and Twin Hold-On                                                                                                     Connector



Replacement hose only – inflator not included
